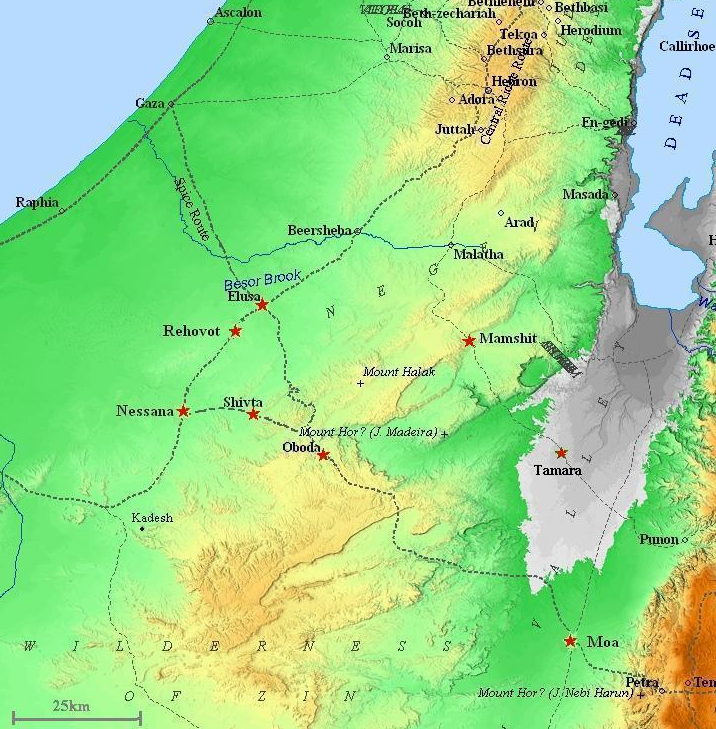

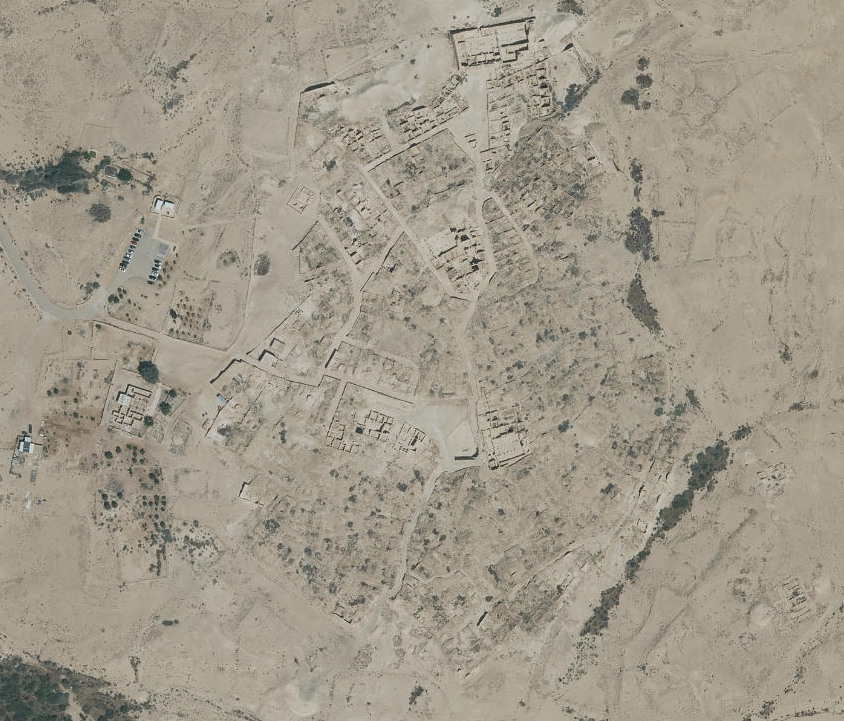

Occupation at Shivta began in the 1st century BCE when it was a station on the Incense Road ( Avraham Negev in Stern et al, 1993). Occupation continued from Nabatean to Roman and Byzantine times until the Arab conquest after which the town declined. It was abandoned in the 8th or 9th century CE although some pottery found there suggests some type of occupation continued until the 13th or 14th century CE ( Avraham Negev in Stern et al, 1993). Korjenkov and Mazor (1999a) report that Shivta is situated on flat low-land, built of massive carbonate bedrock where a site effect is not likely.

• from Avraham Negev in Stern et al (1993 v. 4)

Sobata (Isbeita, or Subeita in Arabic; Shivta in Hebrew), a town in the central Negev desert, is situated about 40 km (25 mi.) southwest of Beersheba (map reference 114.032). It was founded in the Middle Nabatean-Early Roman period and flourished mainly in the Late Nabatean-Late Roman and Byzantine periods. The Arabic name preserves the ancient one. This is known from two Nessana papyri, P79 from the early and P75 from the late seventh century. A faulty reading in Nilus' Narrationes (VII, PG 79, col. 688), written in the early fifth century, also refers to Sobata; the text was emended by F. M. Abel. The meaning of the name is obscure. Abel considered it a Semitic Nabatean name. A. Negev looks for the origin of the name in the rare Nabatean personal name Shubitu.

• from Avraham Negev in Stern et al (1993 v. 4)

Occupation at Sobata began in the Middle Nabatean period. The settlement was founded on a road that links Oboda, Sobata, and Nessana, by way of a chain of small, as yet unidentified settlements. Nabatean Sobata was established in the early part of the reign of Aretas IV (9 BCE-40 CE ), or perhaps even earlier, in the later years of Obodas III (30-9 BCE). During this time, and especially during the reign of Rabbel II (70-106 CE)--that is, in the Late Nabatean period when the Nabateans began to engage in desert agriculture and horse breeding-the city enjoyed a period of prosperity. It was quite large, occupying more than a third of the built-up area of subsequent periods. The history of the city in the third and fourth centuries is not known, but in this writer's opinion, the first churches in the town-the South Church east of the public reservoirs and the North Church on the northern outskirts of the town-were built by the middle of the fourth century. Following the Arab conquest, Sobata, like the other towns in the western central Negev, continued to exist for about another two hundred years. On the basis of the pottery found there-Arab glazed ware and pottery cast in a mold-the site's excavators suggested that the Arab settlement there did not cease until the thirteenth or fourteenth century CE. The earlier date of the eighth to the ninth centuries seems more reasonable, however. At that time settlement also ended at Nessana and Elusa

• from Avraham Negev in Stern et al (1993 v. 4)

The ruins at Sobata were described for the first time in 1870 by E. H. Palmer, and the first general plan of the city, with its most important buildings, was drawn by A. Musil in 1901. Musil's plan, however, is not exact. He failed to notice that the city's streets were slightly curved. In 1905, the site was visited by an expedition from the Ecole Biblique et Archeologique Francaise in Jerusalem, with the participation of A. Jaussen, R. Savignac, and L. H. Vincent. They located the Byzantine cemetery and several tombstones with inscriptions from the end of the sixth century CE, and found a short Nabatean dedicatory inscription from the time of Aretas IV among the ruins of the city. In 1914, C. L. Woolley and T. E. Lawrence drew more accurate plans of the town, its churches, and several houses. In 1916, the Committee for the Preservation of Monuments of the German-Turkish army sent an expedition to Sobata under the direction of W. Bachmann, C. Watzinger, and T. Wiegand. Its main contribution is the fine aerial photographs they took. From 1934 to 1938, the first large-scale excavations were conducted at Sobata on behalf of New York University and the British Archaeological School in Jerusalem, under the direction of H. D. Colt. The results of these excavations were never published, however. From 1958 to 1960, the buildings and streets were cleared by the Israel National Parks Authority, under the supervision of M. Avi-Yonah.

During several surveys directed by A. Negev from 1970 to 1976, the site and plan of the Nabatean town were studied and a new chronology for the churches and the town evolved. From 1979 to 1982, A. Segal made limited-scale investigations and excavations on behalf of the Ben-Gurion University of the Negev. Sobata's town plan and plans of the central church and four private buildings could then be drawn. Research was resumed in 1985 in the North Church by S. Margalit. Solutions were proposed to some typological--chronological problems pertaining to the churches in the Negev. The city plan of Sobata was again analyzed by J. Shershevski in 1985.

• from Walmsley (2007) and based on D. Whitcomb

Age	Dates	Comments
Early Islamic I	600-800 CE	‎
Early Islamic II	800-1000 CE	‎
Middle Islamic I	1000-1200 CE	‎
Middle Islamic II	1200-1400 CE	‎

Korjenkov and Mazor (1999a) identified damage patterns in the ruins of Shivta which indicated previous devastation by earthquakes. Although they mention at least three strong [recognizable] earthquakes ... during the Roman, Byzantine, and post-Byzantine periods, in their conclusions this was decremented to at least two earthquakes which damaged Byzantine and post-Byzantine constructions. It appears that Korjenkov and Mazor (1999a)'s use of term Roman in terms of dating is non-standard and could include Byzantine earthquakes such as the southern Cyril Quake of 363 CE or the Monaxius and Plinta Quake of 419 CE. Erickson-Gini (2013) appears to solve the mystery of two or three earthquakes as she reports on two later earthquakes - one based on a revetment wall on the western perimeter of Room 123 which she suggested struck in the Late Byzantine period, probably in the early seventh century CE when the neighboring site of ‘Avdat/Oboda was destroyed in a tremendous earthquake and another sometime after the site was abandoned at the end of the Early Islamic period ... possibly in the Middle Islamic period based on excavations in Room 121. In terms of nomenclature the three quakes are labeled as follows:

• Byzantine earthquake - abandoning Korjenkov and Mazor (1999a)'s use of the term Roman
• Late Byzantine earthquake
• Post abandonment earthquake

Dates for all three earthquake appears to be tenuous.

Figures

Discussion

Margalit (1987) excavated the North Church at Shivta and discovered two building phases.

1. The first basilica was a monoapsidal church erected in the mid-fourth century A.D.
2. After the first church was damaged, most probably by an earthquake, a new one was erected in the beginning of the sixth century A.D.

Dating of initial construction in the first phase was based on 7 coins of the mid 4th century CE found beneath the sealed limestone floor. Margalit (1987) suggested that this pavement subsided due an earthquake and a marble floor was laid at a higher level than the original pavement during the second phase. Negev (1989) wrote about the earthquake also based on excavations in the North Church where he discovered inscriptions which appear to date the earthquake to around 500 CE.

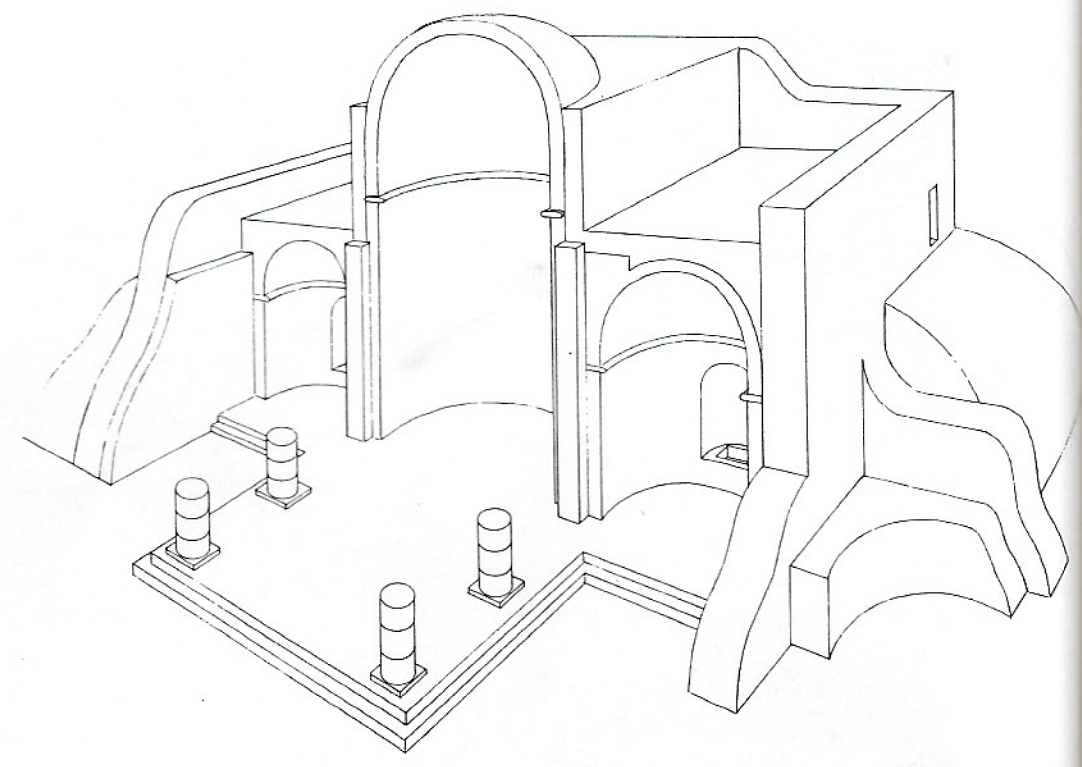

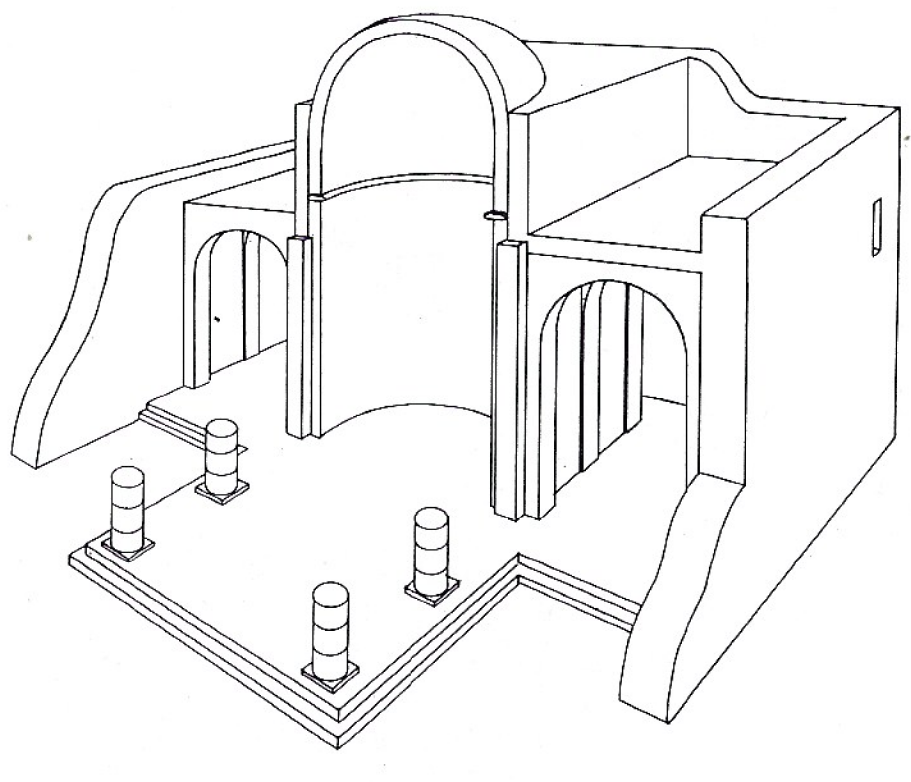

A severe earthquake afflicted Sobata [aka Shivta] still more. At the same time both mono-apsidal churches of Sobata suffered a great deal of damage. The South Church (Fig. 5) was surrounded on all four sides by a high talus. It is highly likely that the transformation of this building from a mono-apsidal basilica into a tri-apsidal one took place at the time when the whole building underwent a complete remodeling. Yet, it is not certain whether this transformation is a direct outcome of the earthquake. The constructional history of the North Church (Fig. 4) is much the same, but outer buildings which were added after the earthquake indeed help in determining the various phases. Originally the mono-apsidal basilica had no additional chapels on the south. When the building suffered severe damage by the earthquake, it was completely surrounded by very high stone taluses on all sides, except on the eastern half of the southern wall of the basilica, where two strongly built chapels with apses and domes were constructed, taking the place of the talus as a support for the shattered southern wall. The repair of the first phase of the church, which was made after the earthquake marked the beginning of the second phase. This too has now been firmly dated by a coin of Justinian (527-538 A.D.) which was found in the intentionally made fill in the room behind the southern apse. The change from the mono-apsidal to tri-apsidal plan must have taken place at this time.

The epigraphic evidence of Sobata may help in attaining a close as possible date both for the earthquake and for the subsequent reconstruction of the North Church. One of these inscriptions, that of 506 A.D., is clearly a dedicatory inscription of a very important building, which justified the participation of a Vicarius, a man of the highest rank, in the dedication of this building. This inscription was not found in situ. However, there is no question about the inscription of A.D. 512, in which year the mosaic floor of one of the added chapels was dedicated by a bishop and the local clergy. It is thus safe to assume that the whole remodeling of the North Church began in the first decade of the sixth century. The second half of the fifth century A.D. was one of tectonic unrest. Severe earthquakes were recorded in the years 447, 498, and 502 A.D. The two latter dates would be highly probable dates for the destruction of the South and North Churches of Sobata, their total remodeling, and their rebuilding as tri-apsidal basilicae, and thus the beginning of Phase II.

Earthquakes referred to by Negev (1989) appear to come from Kallner-Amiran's (1952) catalog. The 447 CE earthquake was reported in Constantinople and would not have caused damage in the Negev (see Ambraseys (2009) for details). The 498 CE earthquake is dated to 499 CE by Ambraseys (2009) and struck Eastern Anatolia. It also would not have damaged structures in the Negev. The 502 CE earthquake is the Fire in the Sky Earthquake. It's epicenter was not close to the region and could only have been expected to, at the most, cause limited damage to structures. This leaves the hypothesized Negev Quake of ~500 CE as a distinct possibility.

Plans

Discussion

Erickson-Gini (2013) suggested that a revetment wall outside Room 123 was evidence of a Late Byzantine earthquake

Revetment walls present around the North Church and buttressing the western wall of Building 123 (Hirschfeld 2003 - see highlighted site plan above) are indications that some damage to the site took place in the Late Byzantine period, probably in the early seventh century CE when the neighboring site of ‘Avdat/Oboda was destroyed in a tremendous earthquake.

Plans and Photos

Discussion

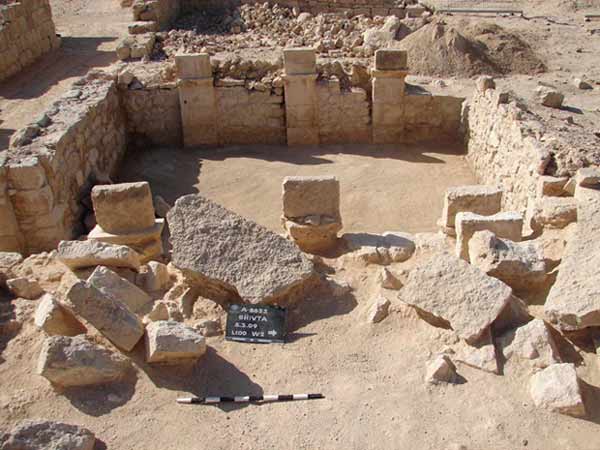

On the western perimeter of Shivta in Building 121 (Fig. 3), Erickson-Gini (2013) found evidence of earthquake induced collapse of the ceilings and parts of the walls (Fig. 8) which she dated to possibly in the Middle Islamic period after the site was abandoned at the end of the Early Islamic period. Collapsed arches were also found (Fig. 7). The arches appear to be in a crescent pattern. Erickson-Gini (2013) discussed dating of the structure is as follows:

The excavation revealed that the structure was built and occupied in the Late Byzantine period (fifth–seventh centuries CE) and continued to be occupied as late as the Early Islamic period (eighth century CE). The structure appears to have collapsed sometime after its abandonment, possibly in the Middle Islamic period.

Dateable artifacts in Room 2 came from the Late Byzantine period and the Early Islamic period (eighth century CE).

Effect	Location	Figure	Comments
Revetment Wall suggesting wall damage	Northern and southern churches Fig. 1. (b) A map of Shivta following Segal (1983) Korjenkov and Mazor (1999a)		When the building [Northern Church] suffered severe damage by the earthquake, it was completely surrounded by very high stone taluses on all sides, except on the eastern half of the southern wall of the basilica, where two strongly built chapels with apses and domes were constructed, taking the place of the talus as a support for the shattered southern wall - Negev (1989) The South Church was surrounded on all four sides by a high talus. It is highly likely that the transformation of this building from a mono-apsidal basilica into a tri-apsidal one took place at the time when the whole building underwent a complete remodeling. Yet, it is not certain whether this transformation is a direct outcome of the earthquake. - Negev (1989)

Effect	Location	Figure	Comments
Revetment Wall suggesting wall damage	location not specified	15 Fig. 15 A supporting wall (marked S.W.). It has no obvious purpose other than to support a tilted section of an original wall of a building at the west—central quarter, Shivta. Such support walls are known from other locations at Shivta as well as at Avdat, Rehovot, and Mamshit. At these locations the tilting of the original walls was caused by earthquakes (Korjenkov and Mazor, 1999b). Korjenkov and Mazor (1999a)	Figure 15 depicts an example of a well built inclined wall that supports a tilted section of a wall of a house at the west—central quarter. Similar support walls are observable at Avdat where these walls reveal a systematic trend, indicating the supported walls were tilted by an earthquake (Korjenkov and Mazor, 1999a). Similarly, the supporting walls of Shivta seem to reflect a former earthquake, in agreement with the above-listed observations that indicate earthquake damage. In certain cases, such support walls are themselves seismically damaged, indicating a second earthquake event. - Korjenkov and Mazor (1999a)
Revetment Wall suggesting wall damage	Western wall of Building 123 Deformation Map modified by JW from Fig. ? of Hirschfeld (2003)		Revetment walls present around the North Church and buttressing the western wall of Building 123 (Hirschfeld 2003) are indications that some damage to the site took place in the Late Byzantine period, probably in the early seventh century CE when the neighboring site of ‘Avdat/Oboda was destroyed in a tremendous earthquake. - Erickson-Gini (2013) this may be the same wall described by Korjenkov and Mazor (1999a) above

Effect	Location	Figure	Comments
Wall and Ceiling collapse	Room 2 in Building 121 Fig. 3 Building 121, plan and section of the 2009 excavation. Erickson-Gini (2013)	Fig. 8 Room 2, section showing earthquake collapse, looking east Erickson-Gini (2013)	collapse of the ceilings and parts of the walls - Erickson-Gini (2013)
Collapsed Wall	Wall 1 in Courtyard of Building 121 Fig. 3 Building 121, plan and section of the 2009 excavation. Erickson-Gini (2013)	Fig. 5 Collapse of W1 in the courtyard, looking southwest Erickson-Gini (2013)	Collapse of W1 in the courtyard - Erickson-Gini (2013)
Arch Collapse	Room 2 along W2 of Building 121 Fig. 3 Building 121, plan and section of the 2009 excavation. Erickson-Gini (2013)	Fig. 7 Room 2, collapsed arches and ceiling slabs along W2, looking west. Erickson-Gini (2013)	collapsed arches and ceiling slabs - Erickson-Gini (2013)

• from Korjenkov and Mazor (1999a)

Damage Type	Location	Figure	Comments
Asymmetric arch distortion	SE Corner of Southern Church Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	3 Fig. 3 (a) Asymmetric deformation of an arch trending ENE in a room at the SE corner of the Southern Church (b) A photograph of two parallel arches deformation of the near one is portrayed in Fig. 3a. The two arches were deformed to opposite directions, indicating that these arches responded to different phases of the seismic waves. Korjenkov and Mazor (1999a)	Seismic wave propagation was parallel to the arch trend In such cases the direction of the seismic wave propagation was parallel to the arch direction. In the example given in Fig. 3 the arch trend was 61° and, hence, the seismic wave propagation was ENE-WSW.
Partially collapsed arch stones	One of the courtyards of the northern quarter Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	4 Fig. 4 Partial collapse of arch stones at Shivta in one of the courtyards of the northern quarter: (a) oblique view of the findings in the field (b,c) stones 1-3 and 17-18 belong to the arch supports and are still standing, whereas arch stones 14-16 are still hanging, and stones 4-13 lie on the ground. Korjenkov and Mazor (1999a)	Seismic waves arrived parallel to the direction of the arch In this example the arch support stones are still standing though slightly displaced, a few stones of the arch are still in the air, and the rest of the stones lie on the ground. The direction of the seismic wave propagation was parallel, or nearly parallel, to the original arch trend. The arch trend was 238°, hence the direction of the seismic waves propagation was along an axis of about NE—SW.
Non-shifted collapse of arches	various locations	5 Fig. 5 Collapse patterns of arch stones: (a) arch stones lie on the ground in a straight line - seismic waves came parallel to the arch trend (b) arch stones lie on the ground in a crescent pattern - seismic waves came perpendicular to the original arch trend. Korjenkov and Mazor (1999a)	Seismic waves arrived parallel to the arch direction Arch stones that lie on the ground in a straight line below the original arch position (Fig. 4a) indicate that the seismic waves propagated in a direction that was parallel to the original arch trend. Eight cases have been observed at Shivta, indicating the seismic wave propagation along a SW—NE axis.
Crescent collapse patterns of arches	various locations	5 Fig. 5 Collapse patterns of arch stones: (a) arch stones lie on the ground in a straight line - seismic waves came parallel to the arch trend (b) arch stones lie on the ground in a crescent pattern - seismic waves came perpendicular to the original arch trend. Korjenkov and Mazor (1999a)	Seismic waves arrived perpendicular to the arch direction Arch stones that lie on the ground in a crescent pattern (Fig. 5b) indicate that the seismic waves arrived in a direction perpendicular to the original arch trend. Five such cases have been found at Shivta, indicating the seismic waves arrived in a SW-NE direction.
Systematic rotation of wall fragments around the vertical axis	various locations	6c Fig. 6 (c) angles of rotation measured at Shivta as a function of the trend of the respective walls. Walls with a trend of 40°-50° reveal clockwise rotations, whereas the perpendicular walls with a trend of 120°-125° reveal a counterclockwise rotation. These observations indicate that the seismic waves arrived along the bisector of these trends, i.e., from the WSW. Korjenkov and Mazor (1999a)	Indicating azimuth of epicenter and seismic intensity Five clockwise rotations were observed at Shivta on walls trending 40°-50° and, in contrast, 4 cases of counterclockwise rotations were observed on the perpendicular walls, trending 120°-130° (Fig. 6c). Thus, the seismic waves came along the bisector of these wall trends, i.e., the seismic waves arrived from the WSW. Rotation of single stones, wall fragments, or entire walls around a vertical axis indicate arrival of the seismic waves at some angle to the wall trend. The theoretical background of this phenomenon has been discussed in detail by Korjenkov and Mazor (1999a,b). Similar rotational damage patterns were observed at the Suusamyr earthquake (I = 9-10, MSK-64 scale) as described by Korjenkov and Omuraliev (1993) and Omuraliev et al. (1993b). By analogy, it seems that the intensity of the seismic event that destroyed Shivta was at least I= 8-9 (MSK-64 scale).

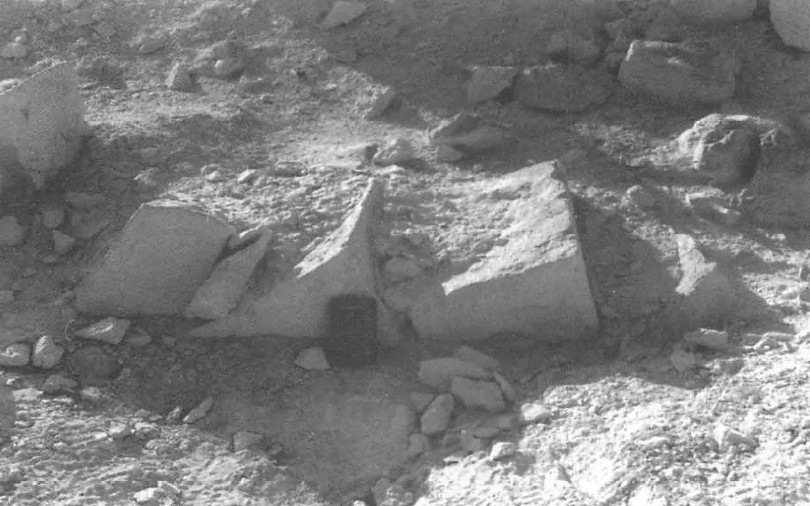

Stones rotated around a horizontal axis in collapsed arches	Courtyard of the west-central quarter Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	7a Fig. 7 (a) Systematic rotation of fallen arch stones in a courtyard of the west-central quarter, Shivta, implying an inclined direction of the arriving seismic waves, which in turn indicates that the hypocenter was relatively close Korjenkov and Mazor (1999a)	The direction of the seismic waves was inclined, indicating a nearby hypocenter Two examples of arch stones lying on the ground, each stone being rotated around a horizontal axis, have been observed at Shivta. One example is shown in Fig. 7a, leading to the following conclusions: as the arch is observed to have fallen straight on the ground, the seismic waves arrived along an axis that was parallel to the trend of the arch, 44° in the studied case, hence the seismic waves arrived along a SW—NE axis the counterclockwise rotation of the individual stones indicates that the direction of seismic wave arrival was SW the rotation of the individual stones indicates that the direction of the arriving seismic waves was inclined to the ground surface and could not be vertical (hypocenter beneath the site), nor could it be sub-horizontal (the hypocenter being far away, as compared to its depth). Hence, the seismic waves arrived in an oblique angle to the ground and the hypocenter was, therefore, rather close to the damaged site, probably in the order of a few tens of kilometers.
Sagged roof slabs rotated around a horizontal axis	Building at the north quarter of Shivta Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	7b Fig. 7 (b) Sagged and rotated roof slabs in a building at the north quarter of Shivta: rotations of this nature indicate that the seismic waves arrived at some angle to the slabs, excluding the possibility that the hypo-center was beneath Shivta, and limiting the possible distance of the epicenter to not more than a few tens of kilometers. Korjenkov and Mazor (1999a)	The direction of the seismic waves was inclined, indicating a nearby hypocenter Figure 7b depicts a row of sagged roof slabs that were also rotated, at a building at the north quarter of Shivta. The tilting of the individual slabs indicates a rotational movement. By the same arguments discussed in the previous section, this indicates that the direction of the arriving seismic waves was inclined, which further indicates that the hypocenter was relatively close to the study location, a few tens of kilometers away. The trend of the row of roof slabs is 138°, hence the direction of the arriving seismic waves was along the SW—NE axis.
Systematic collapse of walls and agricultural fences	various locations	8a Fig. 8 (a) Preferential collapse of a city wall in the northern quarter of Shivta (trending SE 141°); the arrival of the seismic waves was in a perpendicular direction, i.e., along a SW—NE axis Korjenkov and Mazor (1999a) 8b Fig. 8 (b) Preferential collapse of an agricultural fence north of Shivta (trending SE); the arrival of the seismic wave was in a perpendicular direction, i.e., along a SW—NE axis. In both cases the collapsed stones were thrown relatively far away, up to around 8 meters; an earthquake intensity of about I = 8 is concluded Korjenkov and Mazor (1999a) 8c Fig. 8 (c) Direction of clear collapse cases observed at the Byzantine walls at Shivta, as a function of wall directions: it can be seen that 15 cases of collapse toward SW have been observed on walls trending 100°-160°, whereas only 4 cases of collapse toward NE are observable in walls of the same trend. This clearly preferred orientation of collapse indicates destruction by an earthquake, and the seismic waves arrived along a NE—SW axis. Korjenkov and Mazor (1999a)	Indicating seismic intensity and "general direction" of seismic wave propagation Figure 8a shows a wall of a building, trending SE 141°, that collapsed in a SW 231° direction. Figure 8b depicts an agricultural wall trending SE, revealing a distinct collapse towards the SW. Nineteen cases of such walls were observed at Shivta (Fig. 8c). In 15 cases collapse was toward the SW in walls trending 100°-160°, whereas only in 4 cases collapse was toward the NE in walls of the same trend. This clearly preferred orientation of collapse leads to the following conclusions: the cause of destruction was an earthquake since the respective seismic intensity attributed for such collapse in adobe buildings is I = 7 according to the definitions of the MSK-64 scale, in the case of the stone buildings of Shivta the local seismic intensity was at least I = 8 the seismic waves arrived along a general SW—NE direction.
Severe damage to about 75% of the buildings	various locations	n/a	Indicating earthquake intensity of at least I = 8 (MSK-64) The MSK-64 scale definitions relate to degrees of damage of buildings, starting at "slightly" damaged and ascending up to "severe" and "total" destruction. In addition, the MSK-64 scale defines general types of building qualities, starting from modern seismic-proof buildings (type A) and descending through stone buildings (type B), fired-brick buildings, adobe buildings, etc. Accordingly, the Byzantine city of Shivta, built of hard limestone stones placed on hard limestone bedrock, is composed of type B buildings At Shivta more than 75% of the type B Byzantine buildings reveal severe damage, indicating destruction by earthquake of an intensity of at least I = 8 (MSK-64).
Significant spreading distances of collapse debris	Northeast of town Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	8b Fig. 8 (b) Preferential collapse of an agricultural fence north of Shivta (trending SE); the arrival of the seismic wave was in a perpendicular direction, i.e., along a SW—NE axis. In both cases the collapsed stones were thrown relatively far away, up to around 8 meters; an earthquake intensity of about I = 8 is concluded Korjenkov and Mazor (1999a)	A criterion of high intensity earthquake The distance at which collapse debris is observed away from the structural foundations is a crucial indicator for a seismic or non-seismic cause (e.g., static loading, poor foundations, climatic weathering) and the intensity of the former. At Shivta the collapse debris of agricultural walls, which originally were, at most, 1 m high, is observed to reach distances of up to 8 m (Fig. 8b). Experience in building construction reveals that in the case of non-seismic destruction the collapse debris is thrown to a distance that is not more than 1/3 of the original height of the structure (0. Korjenkova, personal communication). The corresponding figure is 8/1 in the described cases of agricultural walls at Shivta. Hence, this very distinct distance of collapse debris spreading denotes destruction by an earthquake. The intensity of that earthquake can be estimated from other damage patterns, described above, e.g., collapse of walls, indicating seismic intensity of I = 8; high percentage of severely damaged walls (about 75%), indicating an intensity of I = 8 or more; and, as described below, joints that cross few adjacent stones in a wall. Thus, the intensity of the earthquake that spread the stones of agricultural stone fences to the described distances was at least I=8 The advantage of studying collapse features at ancient agricultural stone fences is that they are isolated, i.e., there is a distinct distance between them. In contrast, in dense urban complexes observations are hindered because the presence of other building elements touching a wall partially support it and severely complicate the destruction pattern it is often hard to identify the source of fallen stones. In addition, experience reveals that damaged agricultural stone fences were not robbed by later inhabitants, in contrast to the common looting of stones from fancy buildings.
Preservation of walls in a preferred direction within a complex of ruins	NE quarter of Shivta Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	9 Fig. 9 Northern quarter of Shivta. Better-preserved walls have the same orientation (around ENE 68°). The general direction of the seismic wave propagation must have been along the trend of these walls. This type of observation provides a useful tool in the reconnaissance stage of a survey, identifying earthquake destruction and its characteristics from aerial photos of ruin complexes. Korjenkov and Mazor (1999a)	Destruction was by an earthquake and seismic wave propagation was parallel to the preserved wall trend Figure 9 clearly reveals a preferred orientation of preserved walls of the northern quarter of Shivta. This type of key observation is useful as a tool in the reconnaissance stage of an archeoseismic study. The preferred orientation of intact walls testifies that the destruction of the urban complex was definitely by an earthquake. In addition, the axis of the seismic wave propagation was parallel to the trend of the preserved walls. Walls trending around 68° at the northern quarter of Shivta are distinctly better preserved, hence the seismic wave propagation was along the ENE—WSW axis.
Systematic tilting of fallen roof slabs	SW quarter of Shivta Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	10a Fig. 10 a,b. Tilted roof slabs that collapsed into adjacent rooms, as depicted in Fig. 10c (slabs are numbered in the photos and diagram). The roof slabs lost their support and collapsed as a result of oscillations of the supporting walls during an earthquake. The trend of the supporting walls was SE-NW, and the seismic wave propagation was in a perpendicular trend, i.e. NE-SW. Korjenkov and Mazor (1999a) 10b Fig. 10 a,b. Tilted roof slabs that collapsed into adjacent rooms, as depicted in Fig. 10c (slabs are numbered in the photos and diagram). The roof slabs lost their support and collapsed as a result of oscillations of the supporting walls during an earthquake. The trend of the supporting walls was SE—NW, and the seismic wave propagation was in a perpendicular trend, i.e., NE—SW. Korjenkov and Mazor (1999a) 10c Fig. 10 a,b. Tilted roof slabs that collapsed into adjacent rooms, as depicted in Fig. 10c (slabs are numbered in the photos and diagram). The roof slabs lost their support and collapsed as a result of oscillations of the supporting walls during an earthquake. The trend of the supporting walls was SE—NW, and the seismic wave propagation was in a perpendicular trend, i.e., NE—SW. Korjenkov and Mazor (1999a)	Seismic waves propagated in the direction of the tilting Figures l0a,b depict tilting of roof slabs in two adjacent rooms (Fig. 10c) at the southwest quarter of Shivta. In this case both walls that supported the roof slabs oscillated during the earthquake, and as a result the roof slabs collapsed and were tilted in the same direction in both rooms. The seismic wave propagation was perpendicular to the trend of the supporting walls. The trend of the supporting walls depicted in Fig. 10 was SE-NW, hence the direction of the seismic wave propagation was perpendicular, i.e. NE-SW.

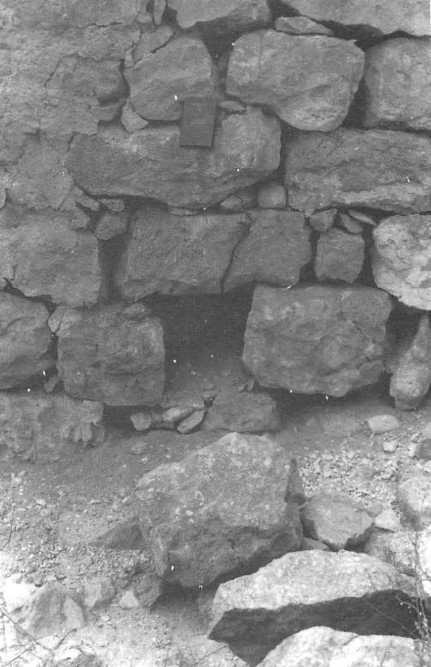

Holes of missing stones ("shooting of stones")	Northern quarter of Shivta Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	11a Fig. 11 Holes of missing stones in walls of adjacent rooms at the northern quarter of Shivta, resembling the phenomenon of "bursting" of rocks in mine galleries: (a) A joint in the stones above the hole of the missing stone provides an independent indication for damage during a strong earthquake Korjenkov and Mazor (1999a) 11b Fig. 11 Holes of missing stones in walls of adjacent rooms at the northern quarter of Shivta, resembling the phenomenon of "bursting" of rocks in mine galleries: (b,c) Rotation of stones above the holes of missing stones, providing independent proof for destruction by a strong seismic event. Korjenkov and Mazor (1999a) 11c Fig. 11 Holes of missing stones in walls of adjacent rooms at the northern quarter of Shivta, resembling the phenomenon of "bursting" of rocks in mine galleries: (b,c) Rotation of stones above the holes of missing stones, providing independent proof for destruction by a strong seismic event. Korjenkov and Mazor (1999a)	Indicating "shooting" or "bursting" during strong earthquakes Figures 11a and 11b,c were photographed in adjacent rooms at the northern quarter of Shivta, depicting the phenomenon of "shooting stones". Nearly a hundred cases of such "missing" stones have been observed at Shivta. This resembles two different phenomena mining bursting — the extrusion of single rocks from walls of mine galleries, as a mode of localized stress release shooting of single rocks out of rock exposures during the M = 7.3 (I = 9-10) 1992 Suusamyr, Kyrgyzstan, earthquake (Korjenkov and Omuraliev, 1993; Omuraliev et al., 1993). It is concluded that the holes of missing single stones, seen in Figs. 11 a—c, similarly resulted from localized stress release during a strong earthquake. This conclusion is supported by the numerous other seismic damage patterns observed in conjunction with the phenomenon of shooting stones, e.g., the joint seen above the missing stone in Fig. 11a, or the rotation of the stone No. 19 as well as stones No. 8, 10, 13, and 15, seen in Figs. 11b,c. In the Suusamyr earthquake mentioned, shooting of single rocks was observed within the isoseismal line of I = 8 and more. By analogy, it is suggested that the earthquake at Shivta, which caused shooting of single stones out of walls, had an intensity of at least I = 8. This is in good agreement with similar intensities concluded from other, above-described, observations, e.g., rotation of stones and other building elements, systematic collapse of walls and agricultural stone fences, high percentage of severely damaged buildings, and distances of thrown away collapse debris of agricultural fences.
Single stones partially pushed out of walls	Northern quarter of Shivta Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	11b Fig. 11 Holes of missing stones in walls of adjacent rooms at the northern quarter of Shivta, resembling the phenomenon of "bursting" of rocks in mine galleries: (b,c) Rotation of stones above the holes of missing stones, providing independent proof for destruction by a strong seismic event. Korjenkov and Mazor (1999a) 11c Fig. 11 Holes of missing stones in walls of adjacent rooms at the northern quarter of Shivta, resembling the phenomenon of "bursting" of rocks in mine galleries: (b,c) Rotation of stones above the holes of missing stones, providing independent proof for destruction by a strong seismic event. Korjenkov and Mazor (1999a)	Indicating damage by a strong seismic event Figures 11b,c show not only holes of bursted out stones, but also reveal stones that were partially pushed out of the wall. For example, stones No. 7, 8, 9, 10, 13, 16, 19 (Figs. 11b,c) are pulled out southward 2.5-26.0 cm. Such pushed stones provide by them-selves a criterion of seismic damage.

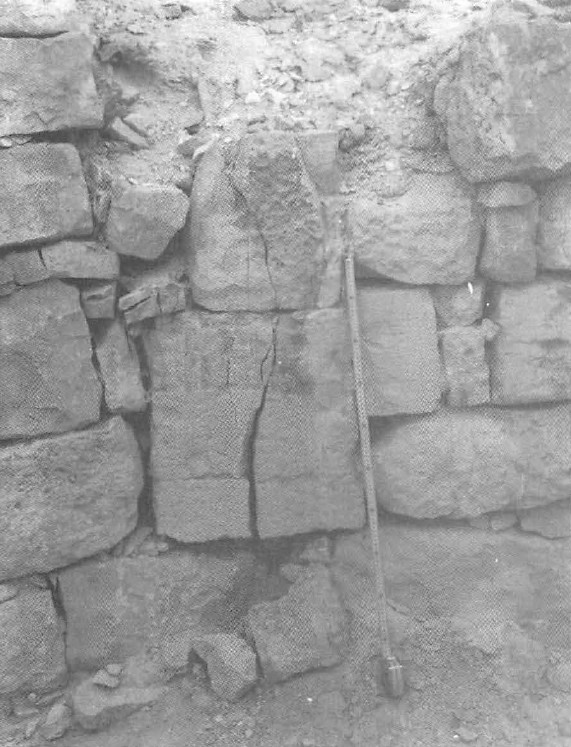

Vertical joints passing through few adjacent stones	12a is in West Central Quarter 12b in Northern Church 13b in South Church Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	12a Fig. 12 Through-going joints at Shivta: (a) A wall at the courtyard at the west—central quarter Korjenkov and Mazor (1999a) 12b Fig. 12 Through-going joints at Shivta: (b) Pedestal of a column of the Northern Church. Korjenkov and Mazor (1999a) 13b Fig. 13. Cracks in structures in Shivta that carry no load: (b) A crack in the doorpost of the SW room of the South Church. Korjenkov and Mazor (1999a)	Minimum earthquake intensity I= 8x MSK-64 scale The definition of damage patterns caused by earth-quakes of intensity I = 7 (MSK-64 scale) includes joints crossing a few adjacent high-quality bricks. The reason that such through-going joints are formed only as a result of high-intensity earthquakes is understandable in light of the high energy necessary to overcome the stress shadows of free surfaces at the stone margins (i.e., the free space between adjacent stones) as described by Fisher et al. (1995), Engelder and Fisher (1996), Becker and Gross (1996). Figures 12a,b depict through-going joints, not in bricks, but in hard limestone stones, and hence, the intensity of the damaging earthquake must have been higher than the I = 7, quoted for bricks. This is in agreement with other criteria that indicate that the earthquake that damaged Shivta was at least I = 8. It is important to note that these cracks occur in stair-cases and doorsteps that by origin carried no load and in a doorpost of the type shown in Fig. 13b, which is shielded by an overlying arch-like structure. The lack of overload rules out static damage in these cases and makes seismic destruction evident.
Cracked doorsteps, staircases, and doorposts	13a in North Church 13b in South Church Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	13a Fig. 13. Cracks in structures in Shivta that carry no load: (a) Cracked upper step of a staircase at the North Church Korjenkov and Mazor (1999a) 13b Fig. 13. Cracks in structures in Shivta that carry no load: (b) A crack in the doorpost of the SW room of the South Church. Korjenkov and Mazor (1999a)	Cracks in structures in Shivta that carry no load
Upper parts of buildings more damaged than lower parts	Southwest quarter Fig. 1. (c) City Plan of Shivta following Segal (1983) dots mark field stations of the present study, circles with numbers denote figure locations. Korjenkov and Mazor (1999a)	14 Fig. 14 Two-floor structure at the southwest quarter, Shivta, that reveals more destruction in its upper part. This is the "skyscraper effect". Korjenkov and Mazor (1999a)	The "skyscraper effect" The arches and roof slabs seen in Fig. 14 mark the ground floor of a building, and the overlying walls are the reminders of the second floor. In this case severe damage is seen in the upper part of the building, as compared to little damage in the lower part. This observation resembles the well-known "skyscraper effect" that results from the higher degree of oscillations of the higher part of the structure. A higher degree of destruction of upper parts of structures at Shivta is the rule, providing an independent reflection of seismically-induced damage.
Special walls supporting constructions that were tilted by a former earthquake	wall of a house at the west—central quarter	15 Fig. 15 A supporting wall (marked S.W.). It has no obvious purpose other than to support a tilted section of an original wall of a building at the west—central quarter, Shivta. Such support walls are known from other locations at Shivta as well as at Avdat, Rehovot, and Mamshit. At these locations the tilting of the original walls was caused by earthquakes (Korjenkov and Mazor, 1999b). Korjenkov and Mazor (1999a)	Figure 15 depicts an example of a well built inclined wall that supports a tilted section of a wall of a house at the west—central quarter. Similar support walls are observable at Avdat where these walls reveal a systematic trend, indicating the supported walls were tilted by an earthquake (Korjenkov and Mazor, 1999a). Similarly, the supporting walls of Shivta seem to reflect a former earthquake, in agreement with the above-listed observations that indicate earthquake damage. In certain cases, such support walls are themselves seismically damaged, indicating a second earthquake event.

• from Korjenkov and Mazor (1999a)

1. The ancient city of Shivta is situated on flat low-land, built of massive carbonate bedrock. Hence, no site-effects are expected to have affected the patterns of seismic damage.
2. Walls of buildings and agricultural fences trending SE (130°±15°) reveal collapse
   in a preferential direction towards the SW (Fig. 8
   Fig. 8

   (a) Preferential collapse of a city wall in the northern quarter of Shivta (trending SE 141°); the arrival of the seismic waves was in a perpendicular direction, i.e., along a SW—NE axis

   (b) Preferential collapse of an agricultural fence north of Shivta (trending SE); the arrival of the seismic wave was in a perpendicular direction, i.e., along a SW—NE axis. In both cases the collapsed stones were thrown relatively far away, up to around 8 meters; an earthquake intensity of about I = 8 is concluded

   (c) Direction of clear collapse cases observed at the Byzantine walls at Shivta, as a function of wall directions: it can be seen that 15 cases of collapse toward SW have been observed on walls trending 100°-160°, whereas only 4 cases of collapse toward NE are observable in walls of the same trend. This clearly preferred orientation of collapse indicates destruction by an earthquake, and the seismic waves arrived along a NE—SW axis.

   Korjenkov and Mazor (1999a)
   ), whereas walls oriented NE (40°±20°) reveal random collapse.
3. This key observation indicates that the seismic waves arrived either from the SW (in the case of a compression wave), or from the NE, if the collapse happened in an extensional quadrangle (Korjenkov and Mazor, 1999a). In any case, the SE and NW directions of seismic wave propagation can be excluded.
4. Rotations of blocks are observed at the Shivta ruins to be clockwise at walls trending NE (40°-50°), and counterclockwise at walls trending SE (115°-130°), as shown in Fig. 6c
   Fig. 6

   (c) angles of rotation measured at Shivta as a function of the trend of the respective walls. Walls with a trend of 40°-50° reveal clockwise rotations, whereas the perpendicular walls with a trend of 120°-125° reveal a counterclockwise rotation. These observations indicate that the seismic waves arrived along the bisector of these trends, i.e., from the WSW.

   Korjenkov and Mazor (1999a)
   . Such rotations could be caused only by push movements by compression waves. Thus, the seismic waves arrived from the SW.
5. The Shivta ruins disclose two main perpendicular directions of walls: NE (30°-60°) and SE (120°-150°), as can be seen in Fig. lc
   Fig. 1

   (c) City plan of Shivta (following Segal, 1983) - dots mark field stations of the present study, circles with numbers denote figure locations.

   Korjenkov and Mazor (1999a)
   . Hence, all the buildings of the Byzantine city can be modeled via a "representative room" depicted in Fig. 16
   Fig. 16.

   Modeling of expected seismic damage patterns at a representative room at Shivta, i.e., with walls trending 45° and 135°. Cones of collapse are marked as dark areas, rotated stones and wall fragments are depicted with their direction of rotation, clockwise or counterclockwise:

   (a) Waves arrived from the SW, i.e., perpendicularly to the walls with a trend of 135° and parallel to the 45° walls

   (b) Waves arrived from the west, at an angle of 45° to the walls of both directions

   (c) Waves arrived from the WSW, i.e., at a different angle to each wall direction. The observations of directions of collapse summed up in Fig. 5 and the observation of directions of rotations summed up in Fig. 13 agree with solution (c) i.e., the seismic waves that destroyed the Byzantine buildings of Shivta arrived from the WSW.

   Korjenkov and Mazor (1999a)
   . Three possible scenarios warrant discussion:
   1. seismic waves arrived parallel to the NE-trending walls (Fig. 16a) — the shear stresses along the walls would be minimal, and hence no rotation would be caused, and only collapse of NW walls would be systematic
   2. seismic waves arrived from the west, i.e., along a line of the bisector between the wall directions—both NE and SE trending walls would reveal oriented collapse to the NW and SW sides respectively; walls with a NE trend would reveal clockwise rotation, and walls with a SE trend would reveal a more or less equal number of counterclockwise rotations
   3. seismic waves arrived from the WSW, i.e., at a different angle to each of the wall directions — the SE walls would manifest systematic collapse generally toward the SW, whereas the NE walls would show random collapse; rotations of elements of walls trending NE would be clockwise, whereas rotations of stones of the SE-trending walls would be counter-clockwise
   The field observations fit this solution (c).
6. A few hundred individual observations, made at almost one hundred locations at the ancient city of Shivta, revealed the 19 types of damage patterns reported above. Part of these observations are useful in determining the axis along which the seismic waves propagated (WSW—ENE), other observations point out that the epicenter was located WSW of the city, and yet another group of observations points to an intensity of I= 8-9 (MSK-64 scale) of the earthquake that destroyed the Byzantine city in the 7th century.
7. The distance of the epicenter of the earthquake that destroyed Byzantine Shivta can be estimated from the following boundary conditions and considerations:
   1. the systematic pattern of destruction indicates dominance of horizontal seismic movements, which in turn rules out the possibility that the hypocenter was beneath the city (i.e., Shivta was not at site A of Fig. 17
      Fig. 16

      Scheme of different patterns of seismic destruction characteristics as a function of the distance from the hypocenter. At location A, above the hypocenter, the vertical component of seismic-induced movements is dominant, resulting in no systematic destruction patterns; site B is located at an angle relative to the hypocenter, hence lateral movements are dominant with a preferred orientation of damage patterns.

      Korjenkov and Mazor (1999a)
      )
   2. on the other hand, the dominance of a horizontal component of the seismic movements implies that the epicenter was at a distance that at least equaled the depth of the hypocenter (i.e., Shivta was at site B of Fig. 17)
   3. the intensity I = 8-9 (MSK-64 scale) limits the distance of the epicenter probably to less that 30 km, a conclusion that has to be checked by data from more sites from the Negev, applying the "triangulation method".
8. An attempt to locate the epicenter of the post-Byzantine earthquake at Shivta is made by applying the reconstructed WSW direction of the epicenter, and the concluded epicenter distance of a few tens of kilometers. These boundary conditions were projected on the geological map of Israel: the concluded direction of the epicenter crosses the Zin fault at a distance of 10 km, and the adjacent Nafha fault crosses with the direction of the concluded epicenter at a distance of 50 km. In any case, the results clearly point out that the epicenter was in the Negev highlands and not in the Dead Sea Rift Valley.
9. The seismic damage patterns described so far were observed on buildings built in the Byzantine period and in secondary walls added later on, leading to the conclusion that at least two earthquakes damaged the Byzantine and post-Byzantine constructions.
10. The described variety of seismic damage patterns provides tools to establish certain characteristics of the involved earthquakes, e.g., seismic intensity, axis of seismic waves propagation, and in the case of systematic rotation, also the specific direction of the epicenter. In a more advanced stage of the archeoseismological study, the investigations in individual sites can be put together into a regional picture that provides more definite answers on the nature of the studied earthquakes. For example, the Negev data from several ancient ruin centers may be compiled, e.g., Mamshit, Avdat, Rehovot, Haluza, Hurvat Sa'adon, Shivta, and Nizzana (Fig. 1
    Fig. 1

    (a) Ancient cities of the central Negev and main trade routes; following Segal (1983) and Russell (1980)

    Korjenkov and Mazor (1999a)
    ). In other words, the triangulation approach is recommended (Korjenkov and Mazor, 1999a , 1999b).
11. The common descriptions of damage patterns typifying different earthquake intensities are based on the inventory of modern buildings. The present work brings up additional damage patterns observed in ancient architectural complexes, e.g., damage pattern of stone arches, systematic tilt, collapse and rotation of stone building elements, the distance to which collapse debris is thrown away from the respective foundation, as well as preferential collapse of colonnades observed in many published case studies.
12. The described archeoseismological study has modern applications in regard to specifications of seismic safety to be taken into account in new constructions in the Negev highlands.
13. Finally, the described archeoseismological work lends itself to inter-regional and international collaboration in the construction of a seismic archive that goes back thousands of years.

• Modified by JW from Fig. ? of Hirschfeld (2003)

• Modified by JW from Fig. 3 of Erickson-Gini (2013)

• Earthquake Archeological Effects chart
  Earthquake Archeological Effects (EAE)

  Rodríguez-Pascua et al (2013: 221-224)
  of Rodríguez-Pascua et al (2013: 221-224)

Effect	Location	Figure	Comments	Intensity
Displaced or Folded Walls - Revetment Wall suggesting wall damage	Northern and southern churches Fig. 1. (b) A map of Shivta following Segal (1983) Korjenkov and Mazor (1999a)		When the building [Northern Church] suffered severe damage by the earthquake, it was completely surrounded by very high stone taluses on all sides, except on the eastern half of the southern wall of the basilica, where two strongly built chapels with apses and domes were constructed, taking the place of the talus as a support for the shattered southern wall - Negev (1989) The South Church was surrounded on all four sides by a high talus. It is highly likely that the transformation of this building from a mono-apsidal basilica into a tri-apsidal one took place at the time when the whole building underwent a complete remodeling. Yet, it is not certain whether this transformation is a direct outcome of the earthquake. - Negev (1989)	VII +

This archeoseismic evidence requires a minimum Intensity of VII (7) when using the Earthquake Archeological Effects chart of Rodríguez-Pascua et al (2013: 221-224).

• Earthquake Archeological Effects chart
  Earthquake Archeological Effects (EAE)

  Rodríguez-Pascua et al (2013: 221-224)
  of Rodríguez-Pascua et al (2013: 221-224)

Effect	Location	Figure	Comments	Intensity
Wall and Ceiling collapse	Room 2 in Building 121 Fig. 3 Building 121, plan and section of the 2009 excavation. Erickson-Gini (2013)	Fig. 8 Room 2, section showing earthquake collapse, looking east Erickson-Gini (2013)	collapse of the ceilings and parts of the walls - Erickson-Gini (2013)	VIII +
Collapsed Wall	Wall 1 in Courtyard of Building 121 Fig. 3 Building 121, plan and section of the 2009 excavation. Erickson-Gini (2013)	Fig. 5 Collapse of W1 in the courtyard, looking southwest Erickson-Gini (2013)	Collapse of W1 in the courtyard - Erickson-Gini (2013)	VIII +
Arch Collapse	Room 2 along W2 of Building 121 Fig. 3 Building 121, plan and section of the 2009 excavation. Erickson-Gini (2013)	Fig. 7 Room 2, collapsed arches and ceiling slabs along W2, looking west. Erickson-Gini (2013)	collapsed arches and ceiling slabs - Erickson-Gini (2013)	VI +

This archeoseismic evidence requires a minimum Intensity of VIII (8) when using the Earthquake Archeological Effects chart of Rodríguez-Pascua et al (2013: 221-224).
