Deformed Layers in the En Gedi Core (DS-En)

observed from 1999-2001 by Claudia Migowski

• Source and Links


• Taken from Table 2 of Migowski et al (2004) and Table E1 of Claudia Migowski's dissertation (in German). Where discrepancies exist, preference is given to Mig04 and they are noted
• Mig04's "varve" counted interval - 78-302 cm.

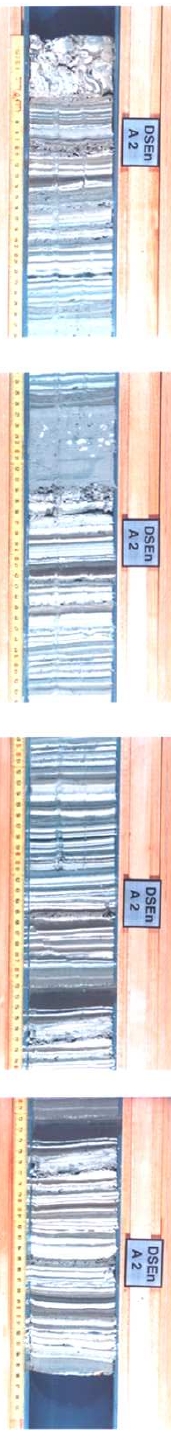

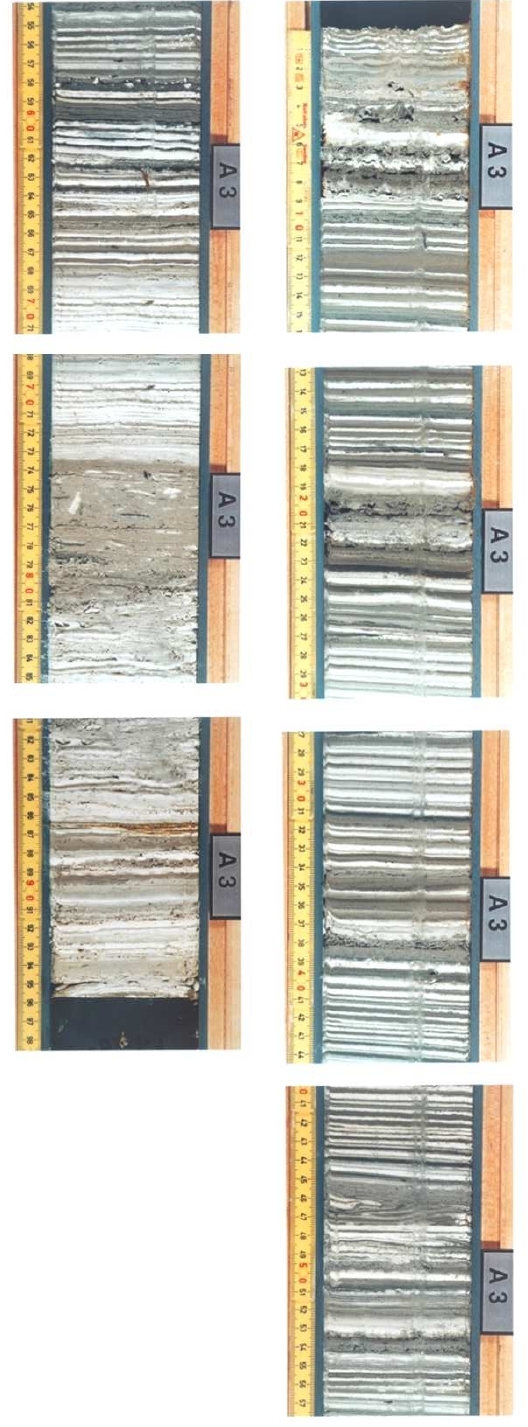

• Core Photos and Lithosections

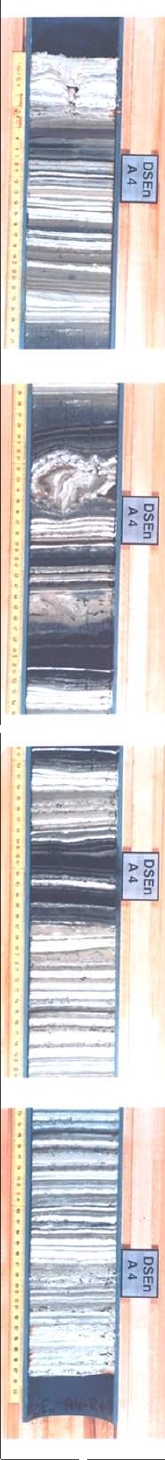

• DSEn A4

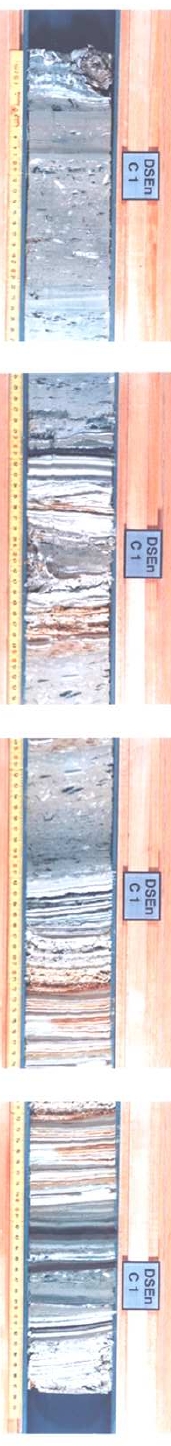

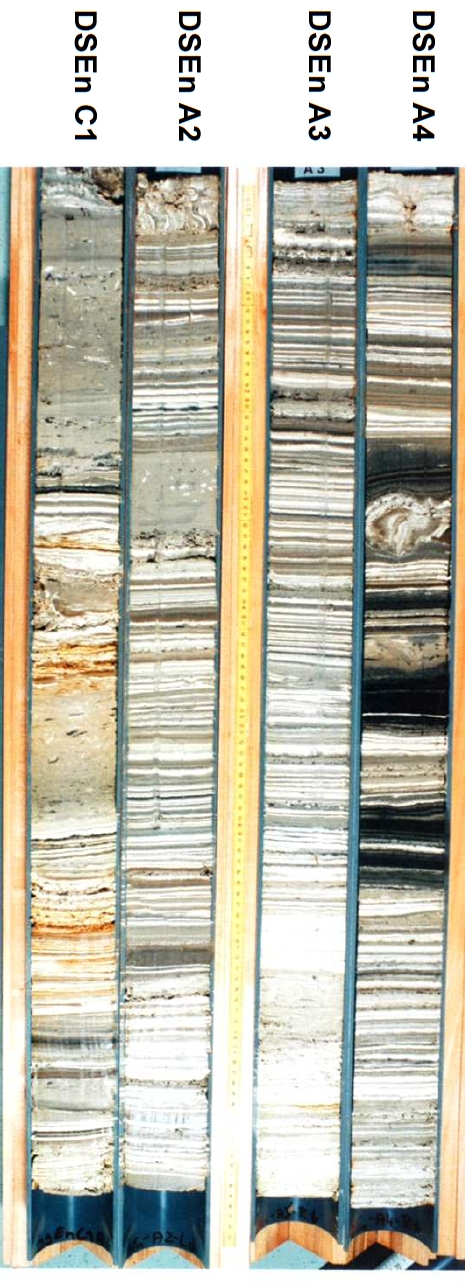

• DSEn C1-A4 overview

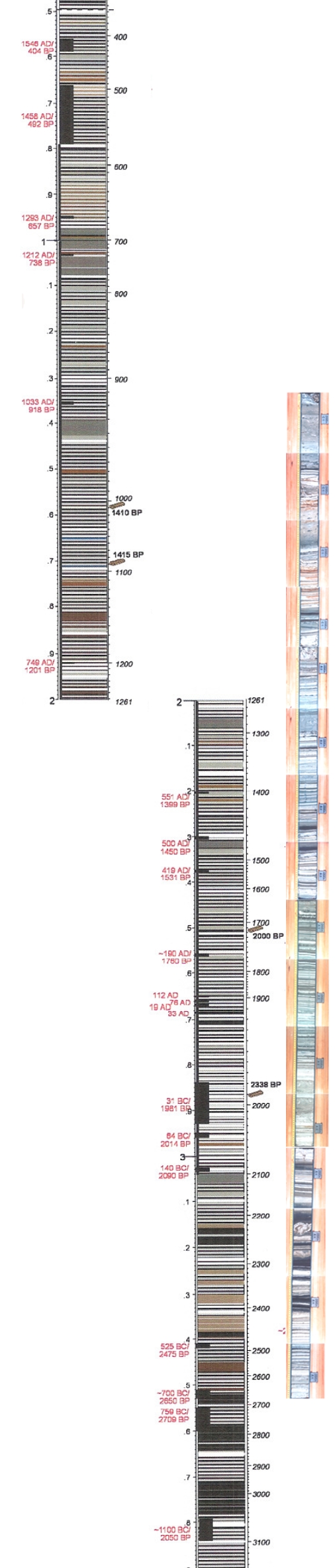

• Cores To Litholog Comparison

• Litholog complete

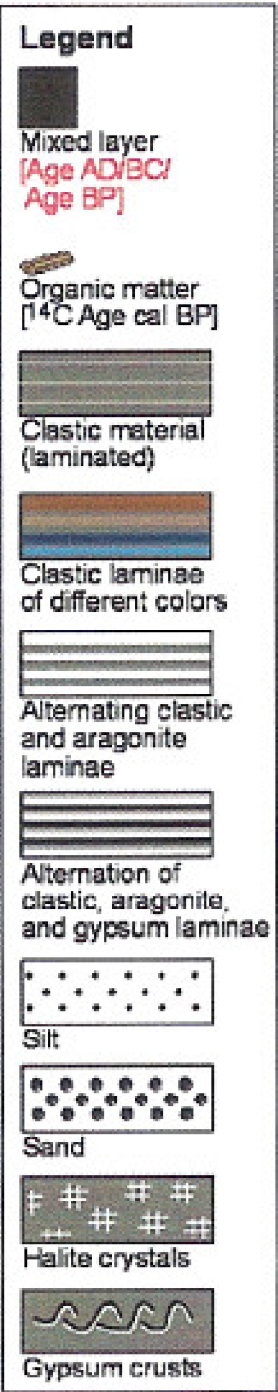

• Litholog Legend

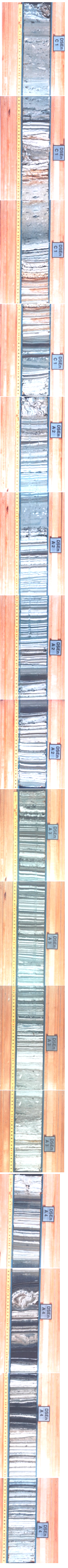

• Composite Core stacked



• Location


• see site in Google Earth


• Column Explanations

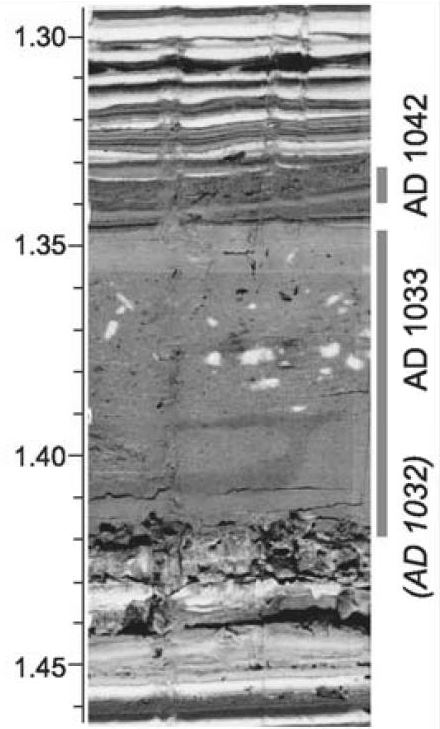

• Top Depth has link to a photo of the sample in core (where applicable)
• Deformation Type as defined by Wetzler et al (2010) :
  1 - Linear Waves
  2 - Asymmetric Billows
  3 - Coherent Vortices
  4 - Brecciated
• Intensity Estimates (Iest) are based on :
  Lu20 - Fig. 3D of Lu et al (2020) (modified from Wetzler et al (2010))
  Wetz10 - Fig. 4 of Wetzler et al (2010)
  Will04 - Williams (2004)
• Migowski et al (2004) define seismite types based on thickness:
  I - greater than 5 cm.
  II - 1 - 5 cm.
  III - less than 1 cm. - these were only identified microscopically and are only reported in the "varve" counted interval (78-302 cm.)
